The SHURflo 804-002 Mini Water Boost System is a 115V, 90 PSI booster pump with a 21 oz accumulator tank. It feeds consistent line pressure to plumbed espresso machines, coffee brewers, and beverage equipment when city water is low, fluctuating, or absent. Self-primes up to 8 vertical feet, can run dry without damage, and is NSF, UL, and CSA listed. It is not a replacement for your machine’s brew pump, and reservoir-only machines usually do not need it.
- Holds 90 PSI so rotary-pump machines don’t starve during peak hours
- Accumulator tank cuts short-cycling and water hammer
- Built-in pressure-reducing valve — no separate regulator to buy
- Self-primes 8 ft from a tank, cart jug, or weak supply line
- Run-dry safe 8025-series pump
- NSF / UL / CSA listed for foodservice
- 3/8" barb inlet and outlet, both removable
- Fits under-counter: ~10" × 10" footprint
What this pump actually does
Most commercial and prosumer espresso machines expect stable incoming water. When building pressure is weak, a filter bank is restrictive, or you are drawing from a remote tank, the machine’s rotary pump works harder and shot quality drifts.
The 804-002 pairs a SHURflo 8025 pump with a 21 oz accumulator. The pump charges the tank; the tank delivers a smooth 90 PSI max to one or more valves. Result: consistent fill rates, fewer pressure dips mid-service, and less wear on the booster itself.
This is line-pressure equipment. It does not create the 9 bar at the puck. Your machine still does that.
Who it is for
- Cafés and restaurants with low or swinging municipal pressure
- Plumbed 1-group and 2-group machines behind a filter or RO that drops incoming PSI

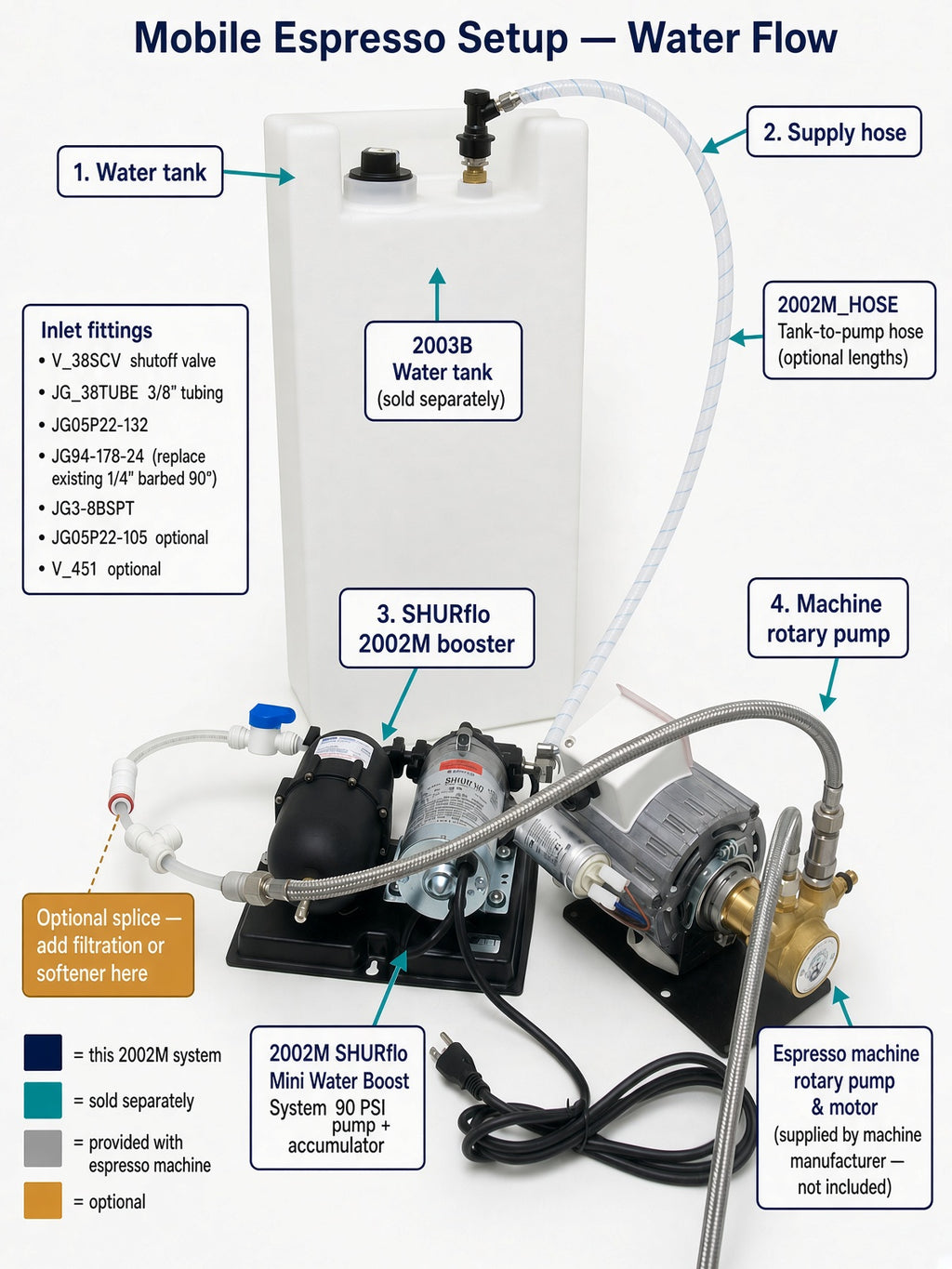

- Coffee carts and catering rigs pulling from a tank up to 8 ft below the pump
- Service techs replacing a failed 804-002 / 8025 module
Who should not buy this
- Machines that only use the internal reservoir — you do not need a booster
- Setups that only need a bottled-water demand pump (use the Flojet BW5000)
- Sites that need more than two standard-flow valves or one fast-flow valve — step up to a Maxi boost system
What’s in the box

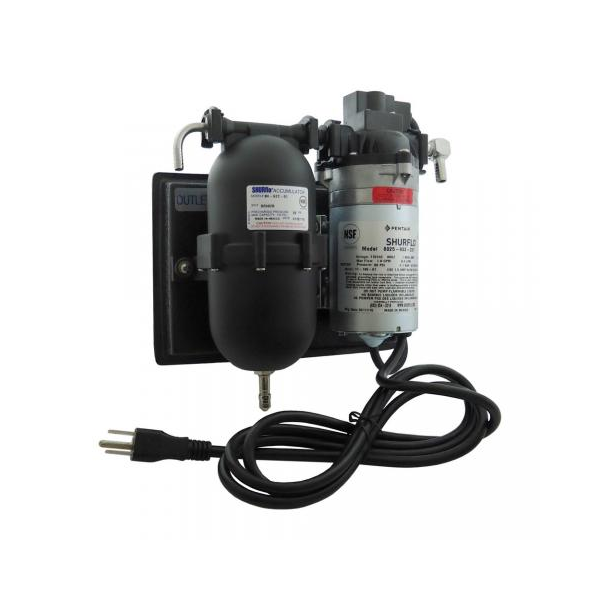

SHURflo 804-002 system: 8025 90 PSI pump, 21 oz accumulator (pre-set ~30 PSI), inlet pressure-reducing valve, mounting board, 115 VAC cord. Inlet and outlet are 3/8" barb.
Need the suction side pre-built? Pair it with the water supply quick-disconnect hose. Broken clasp? Replacement clip set. Booster system cut-sheet
How to install
- Mount the board near the machine, air valve on the tank accessible.
- Plumb 3/8" supply to the inlet barb (PTFE on any threaded adapters).
- Plumb outlet to the machine or filter inlet.
- Confirm tank pre-charge with a tire gauge before first run.
- Plug into a grounded 115V outlet. Prime by opening a valve until flow is solid.
If the pump short-cycles, check for air on the inlet side and verify the accumulator still holds charge. A flat tank is the #1 “new pump still chatters” call.
Frequently Asked Questions:
Do I need a booster pump if my espresso machine has a water tank?
No. Reservoir machines already feed the brew pump from the tank. A booster is for plumbed machines (or a remote tank feeding a plumbed inlet) when incoming pressure is low or missing.
Will the SHURflo 804-002 work with a bottled water jug or coffee cart?
Yes, if the pump can self-prime the lift (max 8 vertical feet) and the inlet is sealed so it doesn't suck in air. For simple bottle-to-machine carts, many shops use a Flojet demand pump instead. Choose 804-002 when you need 90 PSI boost and an accumulator, not just on-demand flow.
Is this the same as the brew pump inside the espresso machine?
No. This boosts incoming line pressure (up to 90 PSI / ~6.2 bar). The machine’s rotary or vibratory pump still builds brew pressure at the puck (~9 bar).
What water pressure does a plumbed espresso machine need?
Most rotary-pump commercial machines want a stable, modest inlet, typically in the 2–4 bar / ~30–60 PSI range after filtration, not a dead line and not unregulated street pressure. The 804-002’s job is to hold that supply steady when the building cannot.
Can the SHURflo mini boost pump run dry?
Yes. The 8025 diaphragm pump is designed to run dry briefly without burning out. Do not treat that as a license to leave the supply empty; air in the inlet is what causes endless cycling.
What fittings does the 804-002 use?
3/8" barb on both inlet and outlet. Both fittings are removable. Use NSF hose and the EP quick-disconnect assembly if you are feeding from a container.
Is the SHURflo 804-002 NSF listed?
Yes. Pump and tank are NSF, UL, and CSA listed for foodservice water.
804-002 vs 804-001 — which one for espresso?
804-001 shuts off at 60 PSI. 804-002 shuts off at 90 PSI. For espresso and coffee equipment behind filters, 804-002 is the usual spec.
