Details
IMS 56.5mm Non-Welded Group Head Screen - Nanotec Coated, 200 Micron
A precision I.M.S. shower screen with a quartz-based Nanotec coating fused to the surface. The coating smooths water flow across the screen, keeps cleaning down to a simple wipe instead of a scrub, and holds up longer than the older PTFE-coated version it replaces.

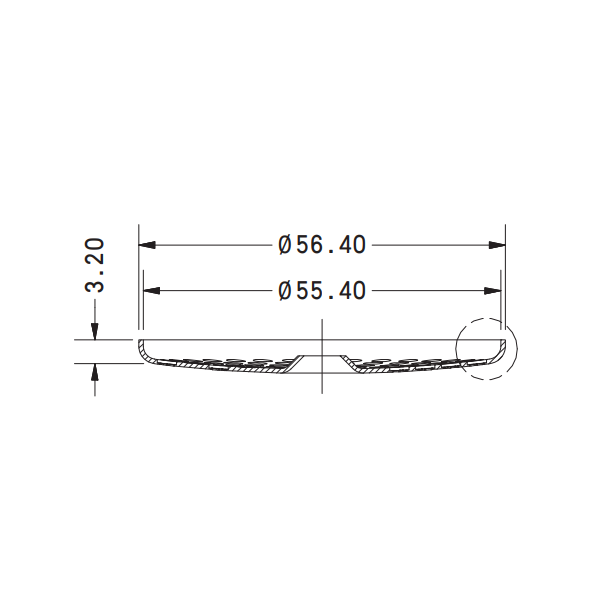

SPECIFICATIONS
- External diameter: 56.4 mm
- Internal diameter: 55.4 mm
- Wall height: 3.2 mm
- Central hole: 6 mm
- Perforations: 98 holes, Ø 3 mm each, with 19 microperforations per hole
- Distribution pattern: circular
COMPATIBILITY
- Fits: Nuova Simonelli and Victoria Arduino group heads
- Replaces: IMS SI 200 NT / SI200NT
INSTALLATION
A quick DIY swap during routine group head maintenance — no special tools beyond the group screen screw.
PRO TIPS
- Because grounds won't clog the microperforations the way they do on an uncoated screen, you can often go longer between screen changes — but still back-flush on your normal schedule, since the coating helps flow, it doesn't replace cleaning.
- Don't scrub the Nanotec surface with an abrasive pad or wire brush; a soft cloth wipe is all it needs, and abrasives will strip the coating that makes this screen worth the upgrade.
