Details

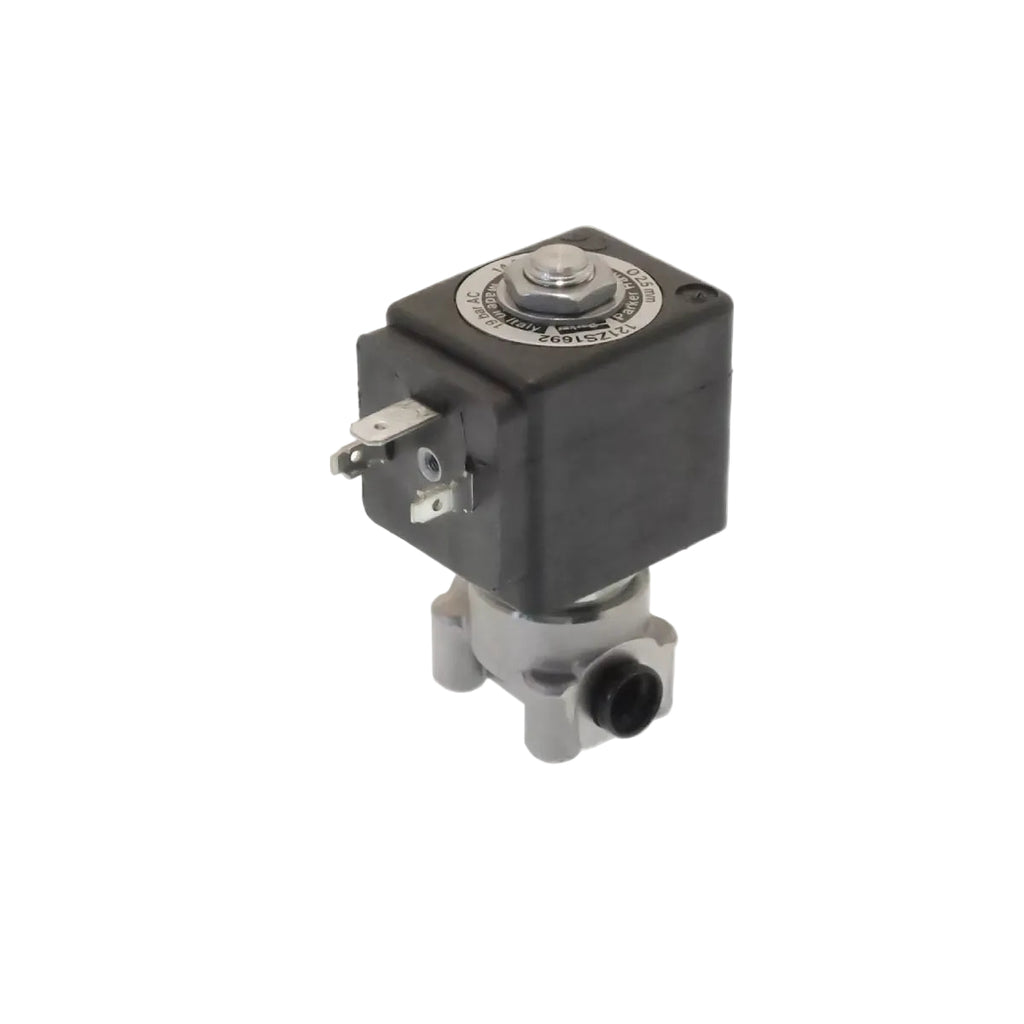

New version/configuration. This is the larger version used for the subsequent series version CKX manufactured after ~2015. Note that the ports in older version were perpendicular (in from the bottom and out the front), where with this new version they are parallel. CMA part #: 4918195. Replaced AS_799.
SPECIFICATIONS
- Model: 121ZS1692
- 1/8" FF fittings on both ports, max 19 bar; FKM seal; 2.5mm orifice
- Fluid temperature range: -10C to +140C
- Overall size: 30mm port-to-port length, 71mm tall
COMPATIBILITY
- Works with: W_635 connector
INSTALLATION
Technician-recommended - involves plumbing the valve body in and making the electrical coil connection.
PRO TIPS
- This is the full valve body with coil included, not just a coil - the replacement coil is 13/11 watt Parker #491514P3 D4F (not available separately). This item is non-returnable per our Return Policy, so confirm fitment.
