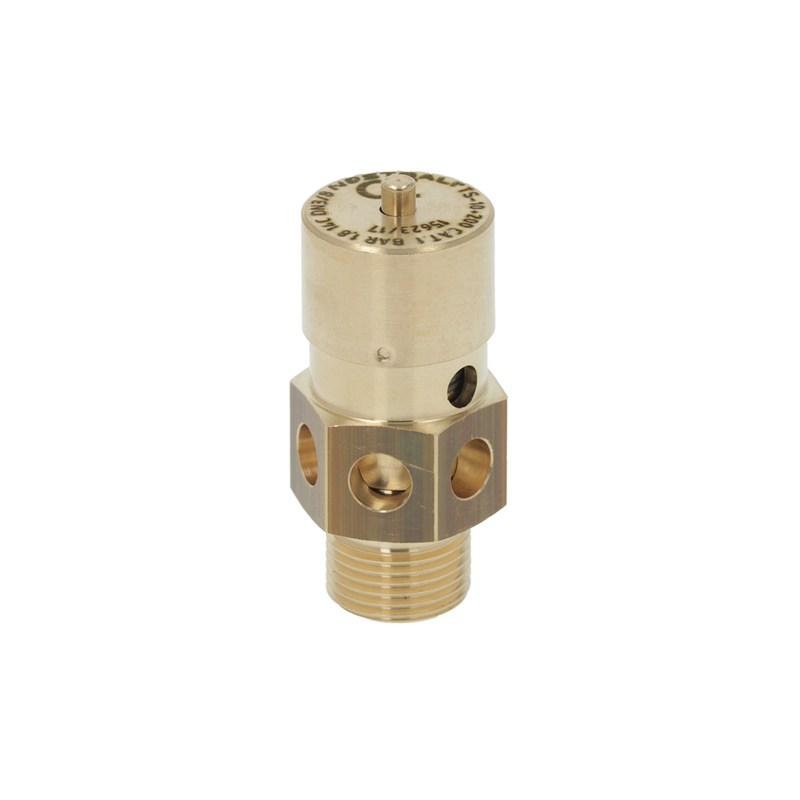

This is the most common size thread, but is by no means used in all makes and models; some use a smaller 1/4" version and some a larger 1/2" version. It may also be too tall if your machine has one of those (as found in Astoria/CMA) plastic overflow assemblies covering the valve. 62 mm tall including threads, body measures 52.5 mm tall. Gasket not included.
- calibration pressure 1.8 bar
- steam outlet flowrate 87 Kg/h
- viton seal
- operating temperature -20/+200°C
- CE/PED certified valve
- Made in Italy
