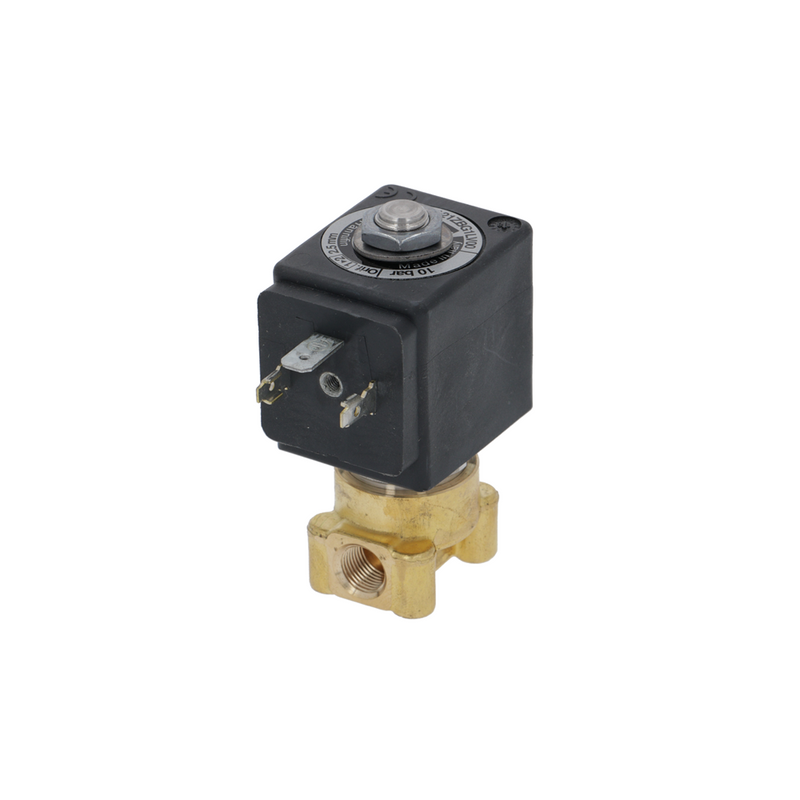

This assembly includes the Lucifer 24 Volt coil with a 1/8" F x 1/8" F BSP valve body. It uses the standard size electrical connector.
7121ZBG1LV00 - fittings ø 1/8"FF - max 10 bar
FKM seal - hole ø 2.5 mm
with coil 483510P0 9W 24V 50/60Hz
temperature of fluids -40°C+140°C
Parker-Hannifin bought out the Lucifer division, so all Lucifer coils now say Parker on them, but they still use the original Lucifer model/part numbers (they also left a raised embossed printing that says Lucifer on the top of some coils) and are only compatible with the Lucifer version valves.
